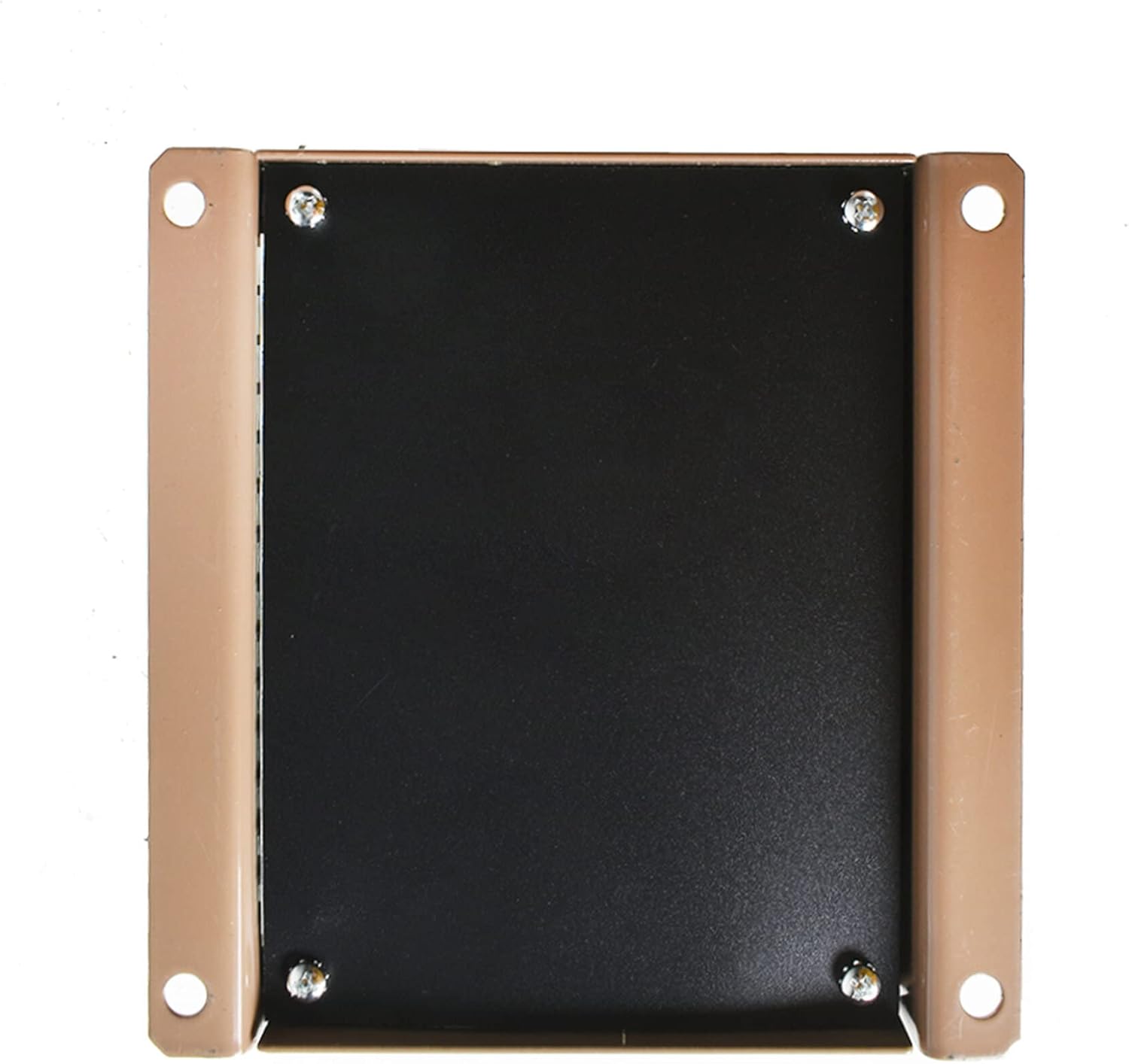

marddpair ESD5500E Electronic Engine Speed Controller Governor Generator Genset Parts Replacement for GAC Matched Actuators
Product details
| Management number | 221432469 | Release Date | 2026/05/03 | List Price | $16.72 | Model Number | 221432469 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
ESD5500E Electronic Engine Speed Controller Governor Generator Genset PartsSpecification:Isochronous Operation/Steady State Stability ± 0.25% or betterSpeed Range/Governor 1K-7.5K Hz continuousSpeed Drift with Temperature ± 1% MaximunIDLE Adjustment 160±20Hz - 60% of set speedDroop adjustment Min.(K-L Jumpered) 15Hz ±6Hz per 1.0 A changeDroop adjustment Max.(K-L Jumpered) 400Hz ±75Hz per 1.0 A changeDroop Adj Max (K-L Jumpered) 875Hz ±75Hz per 1.0 A changeDroop Adj Min (K-L Jumpered) 15Hz ±6Hz per 1.0 A changeSpeed Trim Range±200HzRemote Variable Speed Range 500 -7.5HzTerminal SensitivityJ: 100Hz., ±15Hz/Volt 5.0 K ImpedanceL: 735Hz., ± 60Hz/Volt 65 K ImpedanceN: 148Hz., ±10Hz/Volt 1Meg ImpedanceP: 10V DC Supply 20ma MaxSpeed Switch Adjustment Range 1000-10000HzEnvironmental: Ambient Operating Temperature Range -40℃ to +85℃Shock 20-100HZ 500mm/SecInput power: Supply 12 or 24V DC Battery Systems(Transient and Reverse Voltage Protected)Power Consumption 50mA continuous plus actuator currentActuator Current Range 25℃-(Inductive Load) Min 2.5 Amps, Max 10 Amps continuousCompatibility: ESD5500E Engine Speed Controller replacement for GAC matched actuators (not replacement for ACB2000 electronic actuators)Features: Easy to install, High anti-interference and non-interference with other control devicesPackage Includes: 1x ESD5500E Engine Speed Controller
- Model: ESD5500E
- Input Power Supply: 12 or 24V DC(Transient and Reverse Voltage Protected)
- Speed Range/Governor: 1K-7.5K Hz continuous
- Actuator Current Range at 25°c-(Inductive Load): Min. 2.5 Amps, Max. 10 Amps continuous
- Features: The ESD5500E engine speed controller replacement for GAC matched actuators (not replacement for ACB2000 electronic actuators)
| Color | Beige |
|---|---|
| Voltage | 897 Volts |
| Frequency | 100 Hz |
| Fuel Type | Battery |
| Brand Name | marddpair |
| Unit Count | 1.0 Count |
| Engine Type | Electronic |
| Manufacturer | marddpair |
| Model Number | Does Not Apply |
| Power Source | Battery Powered |
| Material Type | iron |
| Current Rating | 10 Amps |
| Additional Features | 150 |
| Ignition System Type | Electronic |
| Manufacturer Part Number | 7658439-599041 |
| Item Dimensions L x W x H | 7.08"L x 6.69"W x 1.96"H |
