Inch Thread Metal Lathe Brushless Motor Variable Speed Precision Bench Turning Machine with Double Head Double Chuck (8”x 32" Double Chuck)
Product details
| Management number | 221716045 | Release Date | 2026/05/03 | List Price | $726.00 | Model Number | 221716045 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Product Overview Miniature lathe is mainly used for processing the end face of various rotary surfaces and rotating bodies. For example, turning inside and outside cylindrical surface, cone surface, ring groove and forming turning surface, turning end face and all kinds of commonly used metric thread, cone surface, ring groove and forming turning surface, turning end face and all kinds of commonly used inch thread. The design of this new lathe is a great innovation, it solves many disadvantages of other lathes in the past, High precision concentricity can help you better complete the shaft and tube processing! choose it you will not regret!! Product Parameters Model: WM210V Voltage: AC110V 50/60Hz(Brushless Motor) Power: 1100W(1.5HP) Length of center: 31.50"(800mm) Swing Over Bed: 8.27"(210mm) Concentricity tolerance: 0.03mm-0.05mm Rotary diameter of tool rest: 5.51"(140mm) Spindle bore: 1.26"(32mm) Max clamping diameter of right chuck: 4.92"(125mm) Max clamping diameter of left chuck: 3.54"(90mm) Width of lathe bed: 3.94"(100mm) Thread standard: Inch screw thread Number of Spindle Speeds: Infinitely variable speeds Range of Inch Threads: 10-44T.P.I Range of metric threads: 0.3mm-3mm Spindle taper: MT5 Knife rest labour: Horizontal four-station Spindle rotation speed: 50-2500rpm Precision of the spindle: 0.01mm Automatic feed range: 0.1mm-0.2mm Tail frame taper: MT2 Maximum stroke of tool rest plate: 2.16"(55mm) Maximum stroke of middle plate: 2.95"(75mm) Maximum stroke of bottom plate: 26.77"(680mm) Maximum stroke of tailstock sleeve: 2.36"(60mm) Package size: 55.1"*18.5"*20.1"(140cm*47cm*51cm) Net weight/Gross weight: 172.0LB(78kg)/220.5LB(100kg)
- - High quality cast iron bed after high frequency quenching process and precision grinding

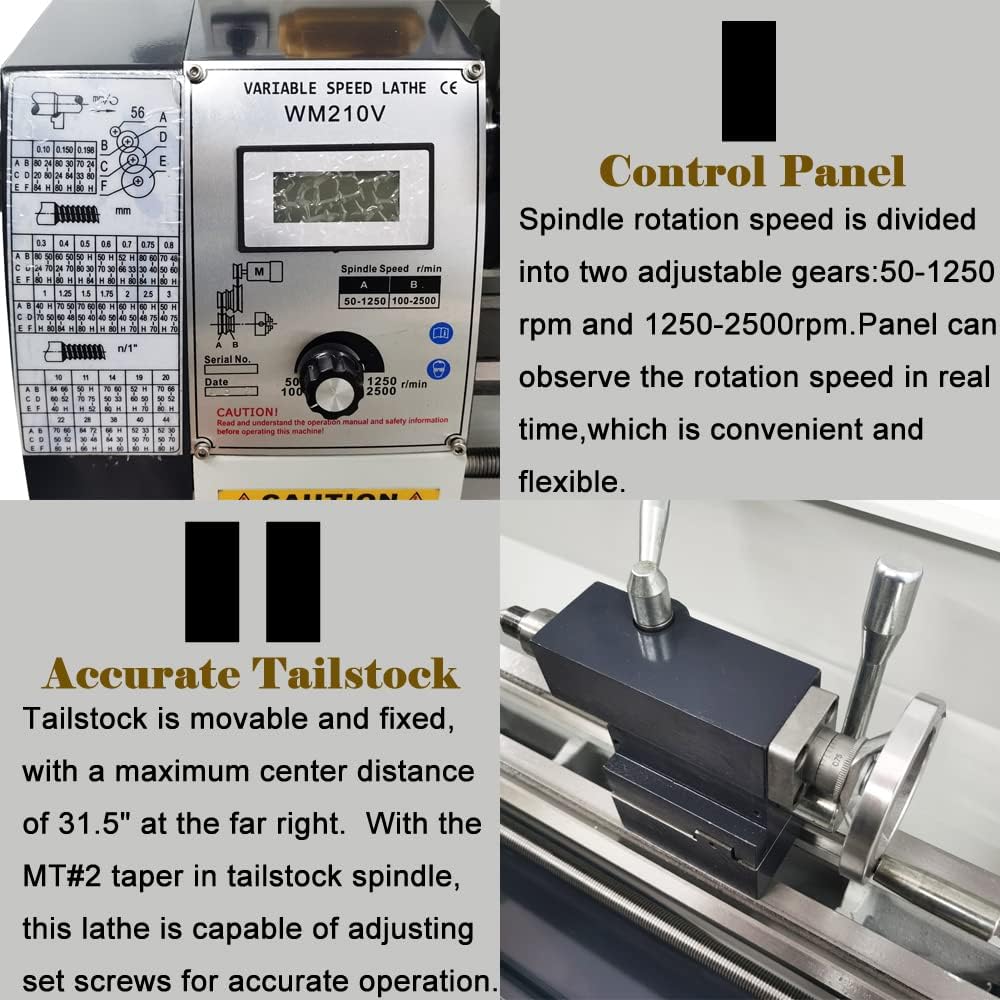

- - The spindle rotation speed is divided into two levels in the range of 50-2500rpm, which can be adjusted continuously
- - Brushless motor has strong power, low noise and saves energy consumption
- - High precision spindle, high quality bearing, high accuracy, long life
- - With one button start and stop switch and forward and reverse switch
| Item Weight | 220 pounds |
|---|---|
| Part Number | S028348 |
| Manufacturer | HayWHNKN |

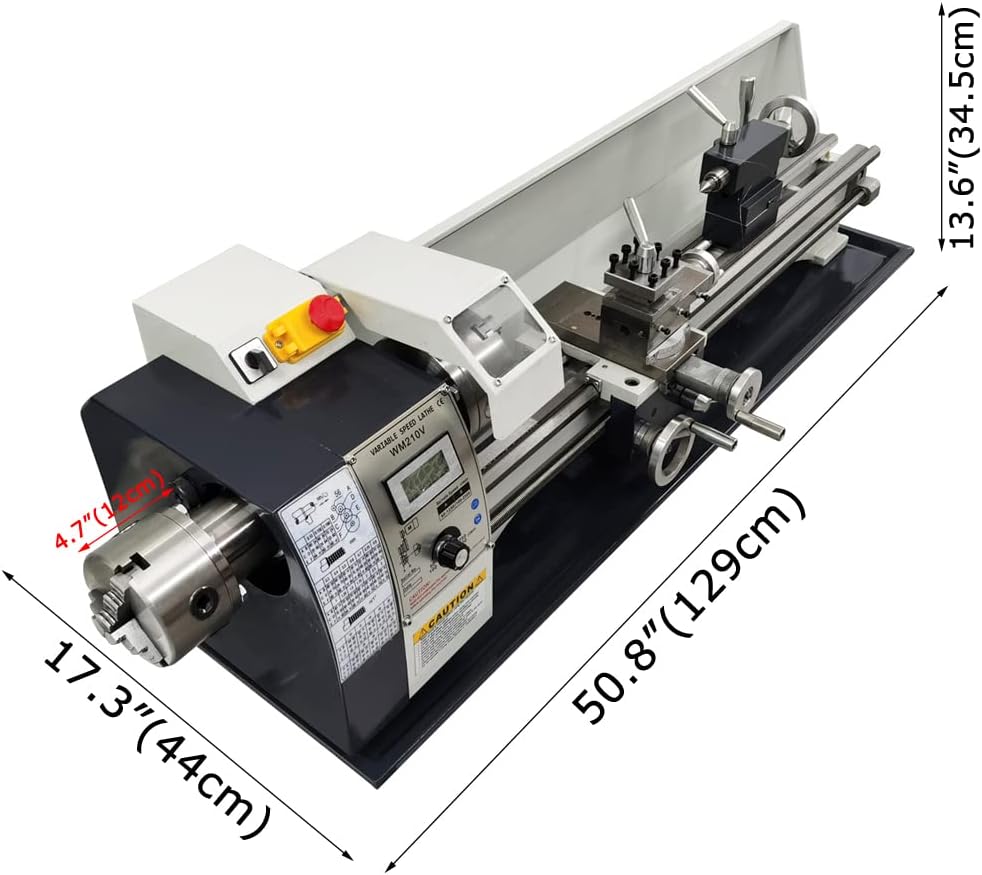

| Product Dimensions | 50.8 x 17.3 x 13.6 inches |
| Included Components | Base oil pan *1, Oil can *1, Hexagon wrench *5, Fork wrench *2, The screwdriver *2, Chuck jaw *6, Chuck spanner *2, Fuse *1, Metal gear *12(24/30/40/48/50/52/60/60/66/70/72/75), WM210V lathe *1 |
| Item Package Quantity | 1 |
